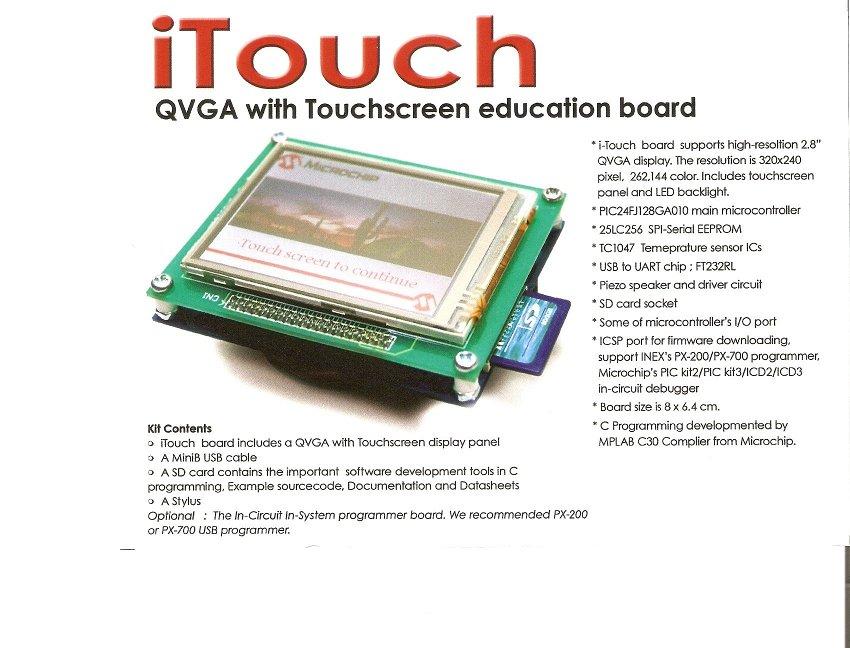

Features:

· Supports high-resolution 2.8” QVGA display. The resolution is 320x240 pixel.
· Supports 262,144 color. Includes touchscreen panel and LED backlight. The interfacing is 8-bit.
· QVGA display controller R61505 from Renesas. Supports Microchip’s library files
· The main microcontroller is PIC24FJ128GA010 from Microchip. Operating at 16 MIPS
· Supply regulated voltage of +3.3V. The input supply voltage range is 4.8 to 9Vdc.
· Apply to DC jack adaptor or Screw-terminal block
· RESET switch and 2 push-button switches with pull-up resistor as input devices
· Peizo speaker with sound driver circuit
· ICD jack for supporting In-Circuit In-System Programming to PIC24FJ128GA010 microcontroller.
· INEX’s PX-200 or PX-700 USB programmer are recommended
· Main clock is at 8MHz and 32.768kHz for RTCC (Real-Time Clock and Calendar) module
· UART1 (Rx,Tx,CTS,RTS) of t.PIC24FJ128GA010 microcontroller interface poin
· 4-Analog inputs. Supports 0 to +3.3V and 7-Digital input/output support +5V tolerance
· Serial EEPROM 256 Kb; 25LC256 for saving the display configuration and general purpose.
· SD/MMC card interfacing circuit.
· USB to Serial converter circuit with CTS and RTS signal for Hardware Flow Control by FT232RL chip.
· Interface with UART2 module of PIC24FJ128GA010 microcontroller
· On-board TC1047 temperature sensor
· Board size is 8 x 6.4 cm.


Here's a video of the ITOUCH:
