Product Description

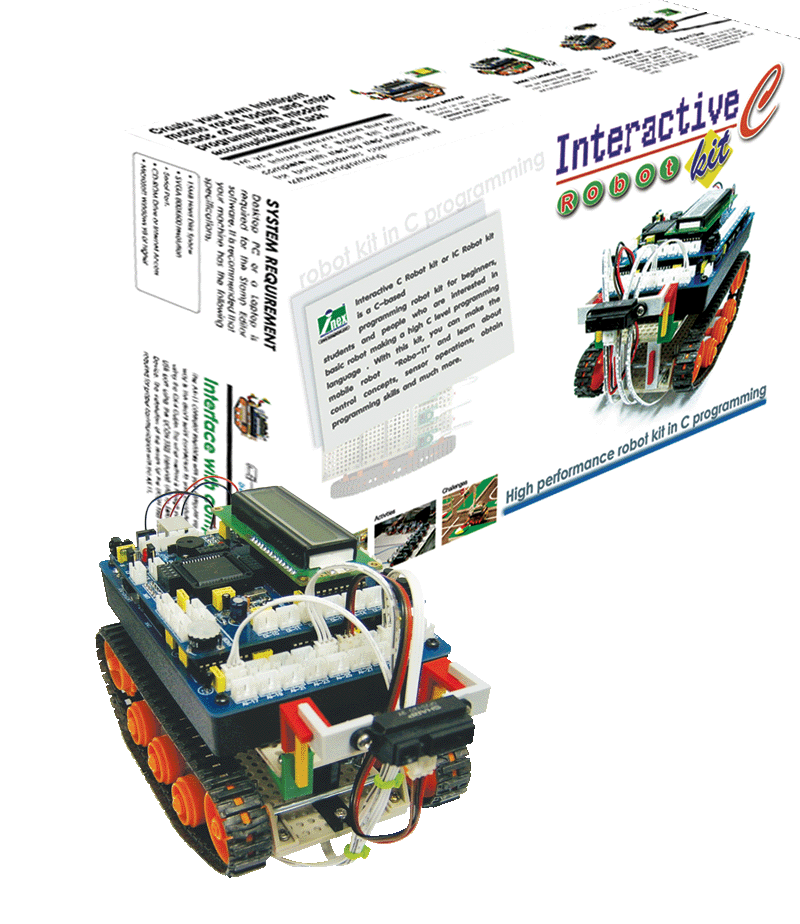

Interactive C robot kit is a high performance robot kit in C programming for power hungry hobbyists. Included is the 68HC11 microcontroller board (AX-11), additional sensors (Switch-IR reflector-GP2D120 IR and ranger-encoder wheel detector), 2 DC gearboxes and mechanical parts for building and modifying a sample robot.
The AX-11 is a modified version of the popular Handy board from MIT and the first ever microcontroller board used for learning C language by Interactive C programming. The AX-11 is a 6811-based microcontroller system that lets you build mobile robots for educational, hobbyist, or industrial purposes. The AX-11 board has been used to run robot design courses and competitions at university and high school levels, and even for controlling industrial devices.
This board uses the 68HC11 microcontroller and 32KB of RAM with back up system, 9-digital inputs , 21-analog inputs, 4-DC motor driver, 6-Servo motor driver, 16x2 LCD module for displaying and RS-232 serial port interface circuit with computer for downloading the program.
Specifications:
• Controlled by 68HC11 Microcontroller
• 32KB RAM with backup system
• PC Serial port interface
• LCD16x2 display
• Piezo speaker
• 4-DC motors Ports
• 6-Servo motors Ports
• 6-Digial input
• 8-Digital output
• 21-Analog input
• 6 x AA battery holder
Here are some videos of the Interactive C Robot in action:
The AX-11 is a modified version of the popular Handy board from MIT and the first ever microcontroller board used for learning C language by Interactive C programming. The AX-11 is a 6811-based microcontroller system that lets you build mobile robots for educational, hobbyist, or industrial purposes. The AX-11 board has been used to run robot design courses and competitions at university and high school levels, and even for controlling industrial devices.
This board uses the 68HC11 microcontroller and 32KB of RAM with back up system, 9-digital inputs , 21-analog inputs, 4-DC motor driver, 6-Servo motor driver, 16x2 LCD module for displaying and RS-232 serial port interface circuit with computer for downloading the program.
Specifications:
• Controlled by 68HC11 Microcontroller
• 32KB RAM with backup system
• PC Serial port interface
• LCD16x2 display
• Piezo speaker
• 4-DC motors Ports
• 6-Servo motors Ports
• 6-Digial input
• 8-Digital output
• 21-Analog input
• 6 x AA battery holder
Here are some videos of the Interactive C Robot in action:
